Fire resistant hose / used 6 inch fire hose
Working pressure :6bar ,8bar,10bar,13bar,17 bar
Product Description
The fire hose is made of polyester staple and filaments or 100% polyester filaments. The lining can be made of natural rubber, synthetic rubber, pvc or pu . The jacket can be color, polyurethane coated jacket or dyed colored jacket (colors can be orange,
yellow,blue and red). The hose resists abrasion. It has bright color, which makesit easy to distinguish. It is mainly used in fire-fighting and shipyards.
Diameter :19mm ,25mm,40mm,50mm,65mm,80mm,100mm,125mm,150mm
Working pressure :6bar ,8bar,10bar,13bar,17 bar
Max length :35M
Fire resistant hose / used 6 inch fire hose
Detailed Images
Fire resistant hose / used 6 inch fire hose
|
inner diameter (inch/mm) |
working pressure (Mpa/bar/psi) |
test pressure (Mpa/bar/psi) |
burst pressure (Mpa/bar/psi) |
length (m/feet) |
|
1” 25 |
1.0 / 10 / 150
1.3 / 13 / 190
1.6 / 16 / 240
2.0 / 20 / 300 |
1.5 / 15 / 220
2.0 / 20 / 300
2.4 / 24 / 360
3.0 / 30 / 450 |
3.0 / 30 / 450
3.9 / 39 / 580
4.8 / 48 / 720
6.0 / 60 / 900 |
15 / 50
20 / 66
25 / 82
30 / 100 |
|
1.5” 38 |
||||
|
2.5” 64 |
||||
|
3” 76 |
||||
|
4” 100 |

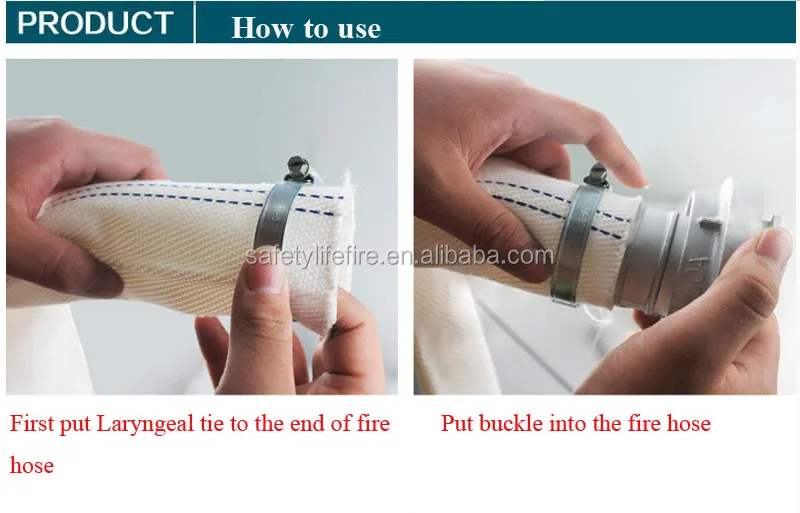

How to use
