fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

Specifications
ABC Chemical Powder Fire Extinguishers
2. ISO Exporting Standard
3.Capacity:1kg, 2kg, 4kg, 4.5kg, 6kg, 9kg, 12kg, 25kg, 50kg…
4.Cylinder material: carbon steel
5.Support OEM
6.MOQ:500pcs

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

IMG_9602

Product Description

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher



4KG Fire extinguisher

40% ABC dry powder

Stored pressure

Outer Diameter: 160mm

Cylinder length: 430mm

Working pressure: 14bar

Test pressure: 27bar,

Fire class: 21A & 113B C

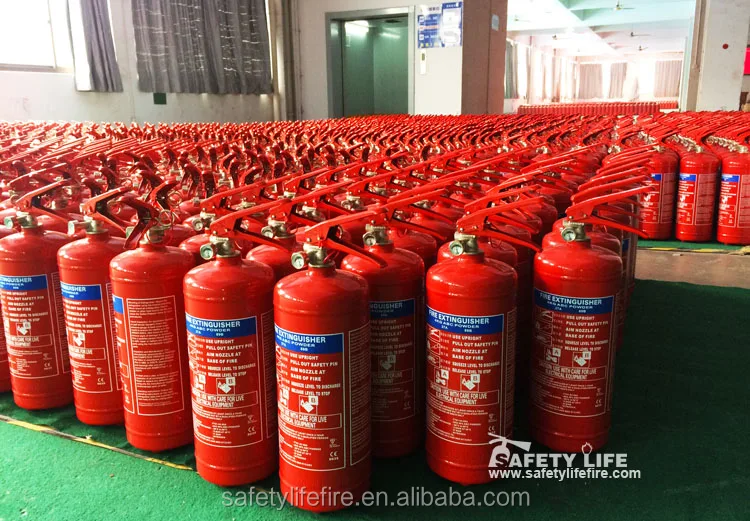

Burst Pressure: 100Barfire extinguisher 10 lbs/EXTINTOR PQS 6 KILOS/extinguisher 6kg

An ABC designation on a fire extinguisher means it will extinguish different types of fires. The "A" classification means the chemicals contained within the fire extinguisher are suitable for paper based substances; the "B" classification means it's suitable for flammable liquids, and the "C" classification means it's suitable for electrical equipment.  Fire extinguishers have 5 different classes (A,B,C,D, and K, the last two being for chemical laboratories and kitchens, respectively.)  ABC extinguishers are also known as "dry chemical" extinguishers, containing the chemical monoammonium phosphate.

IMG_20190525_150716

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

IMG_9246

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

IMG_9309

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

IMG_9310

The "A" classification means the chemicals contained within the fire extinguisher are suitable for paper based substances.

The "B" classification means it's suitable for flammable liquids.

The "C" classification means it's suitable for electrical equipment.



Specifications
ABC Chemical Powder Fire Extinguishers
2. ISO Exporting Standard
3.Capacity:1kg, 2kg, 4kg, 4.5kg, 6kg, 9kg, 12kg, 25kg, 50kg…
4.Cylinder material: carbon steel
5.Support OEM
6.MOQ:500pcs

fire extinguisher (83)

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

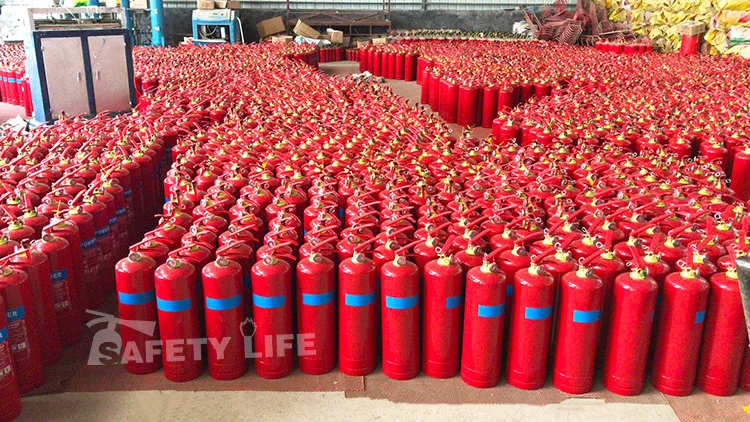

fire extinguisher (56)

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

fire extinguisher (47)

fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher

dry powder fire extinguishers (8)

For the home, select a multi-purpose extinguisher (can be used on all types of home fires) that is large enough to put out a small fire, but not so heavy as to be difficult to handle.
Choose a fire extinguisher that carries the label of an independent testing laboratory.
Read the instructions that come with the fire extinguisher and become familiar with its parts and operation before a fire breaks out. Local fire departments or fire equipment distributors often offer hands-on fire extinguisher trainings.
Install fire extinguishers close to an exit and keep your back to a clear exit when you use the device so you can make an easy escape if the fire cannot be controlled. If the room fills with smoke, leave immediately.
Know when to go. Fire extinguishers are one element of a fire response plan, but the primary element is safe escape. Every household should have a home fire escape plan and working smoke alarms.



Technical Data


 fire extinguisher


2KG


2.3KG


3KG


3KG


4.5KG


5KG


6KG


7KG


OUT-DIAMETER(mm)


114


114


114


133


152


152


152


152


VOLUME(L)


3


3.5


4.5


4.5L


6.72


7.5


9L


10.5


CYLINDER LENGTH(mm)


420


470


600


450


510


570


650


745


CYLINDER WEIGHT(kg)


4.9


5.6


6.8


7.2


10


11


13


14


EXTINGUISHER WEIGHT(kg)


7.55


8.55


10.4


10.85


15.51


16.65


18.65


21.65


CO2 FILLED WEIGHT(kg)


2(-0.1)


2.3(-0.12)


3(-0.15)


3(-0.15)


4.5(-0.22)


5(-0.25)


6(-0.6)


7(-0.35)


MAX WORKING PRESSURE(bar)


168


168


168


168


168


168


168


168


TEST PRESSURE(bar)


250


250


250


250


250


250


250


250


MIN WALL-THICKNESS(mm)


4


4


4


4.5


5


5


5


5


MATERIAL


Ck45


Ck45


Ck45


Ck45


Ck45


Ck45


Ck45


Ck45


PACKING SIZE(CM)


25*25*54


28.5*12*59


28.5*12*71


28.5*28.5*56


20*16*62


20*16*69


20*16*76


23*16.2*85

glass fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher



A portable fire extinguisher can save lives and property by putting out a small fire or containing it until the fire department arrives; but portable extinguishers have limitations. Because fire grows and spreads so rapidly, the number one priority for residents is to get out safely.
Safety tips

Use a portable fire extinguisher when the fire is confined to a small area, such as a wastebasket, and is not growing; everyone has exited the building; the fire department has been called or is being called; and the room is not filled with smoke.
To operate a fire extinguisher, remember the word PASS:
- Pull the pin. Hold the extinguisher with the nozzle
pointing away from you, and release the locking
mechanism.
- Aim low. Point the extinguisher at the base of the fire.
- Squeeze the lever slowly and evenly.
- Sweep the nozzle from side-to-side.



 Film-Forming Fluoroprotein (FFFP) foam provide highly efficient Class A and B extinguishing capabilities, it is also an effective fire preventing vapor barrier when applied to volatile chemical spills. FFFP foam is an alcohol resistant fire fighting agentdesigned to extinguish a variety of materials including alcohols, polar solvents, and hydrocarbons


These extinguishers contain a special potassium acetate based, low PH extinguishing agent developed for use in pre-engineered restaurant kitchen systems. The recent trend to more efficient cooking appliances and use of unsaturated cooking oils requires the use of a hand portable fire extinguisher with greater fire fighting capacity and cooling effect to combat these very difficult fire.

glass fire extinguisher/EXTINTOR PQS 4 KILOS/recharge dry powder fire extinguisher
